Application

Rich Development Experience

BoardTek has design-collaboration experience with leading companies in the Americas, Europe, Northeast Asia, and Southeast Asia. With deep technical expertise and rapid response, we meet customer needs and provide the best recommendations. Current vacuum-sputtering applications cover notebooks, tablets, AIOs, Smart PCs, in-vehicle and military-grade computers. Each customer has a dedicated project engineer for planning, design, experimentation and development, ensuring smooth execution and timely fulfillment, with customers now spanning the globe.

EMI Vacuum-Sputtering Products Supplied to Leading Global Companies

(Brands listed alphabetically)
Americas — DELL, HP
Asia — acer, ASUS, Lenovo, LG, TOSHIBA, VAIO
Asia — CLEVO, COMPAL, Inventec, PEGATRON, Quanta, Wistron

Quality Assurance

All BoardTek EMI vacuum-sputtering products comply with TUV / RoHS / WEEE / UL and other international safety regulations. These international standards ensure the quality and technical edge of BoardTek’s products.

Third-Party Test Results
BoardTek’s STARRY PVD coating has no noticeable impact on EM communications (1 GHz – 6 GHz).

AF Anti-Fingerprint Coating

Technical Description:
Anti-fingerprint vacuum coating uses vacuum-sputter deposition to apply an anti-fingerprint coating on enclosure surfaces, reducing fingerprint and stain adhesion; existing stains wipe off easily, with scratch resistance.

Advantages:
Nanometer-scale protective coating technology.
Low color shift.
Fully eco-friendly, pollution-free process.

Applications:
Notebooks, mobile phones, touch-panel glass, 3C electronics, eyeglass lenses, etc.

Coating Specifications:
Water contact angle > 110°
Post-coating color difference: ΔL ±1.5; Δa ±0.5; Δb ±0.5
Passes notebook usage test specifications.

Image source: https://www.letemsvetemapplem.eu/zh-CN/2017/06/21/vite-co-je-to-oleofobni-vrstva/

Image source: BoardTek original

OEM Coating Products — Films

Technical Description:

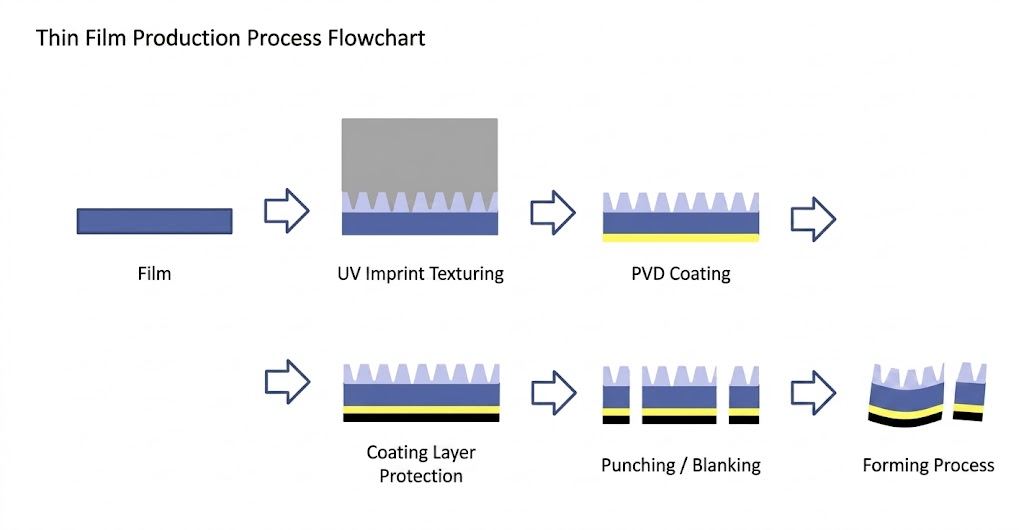

Transparent films are patterned with printing or UV embossing to create the desired texture on the back, then a metal film is sputtered on for a metallic shimmer effect. Subsequent printing, stamping, thermoforming or adhesive backing completes the decorative coated sheet.

Advantages:
Continuous-line production with stable coating thickness, color and good adhesion.

Applications:decorative nameplates / films.

Coating spec
Aluminum: transmittance T<10%~ 90%, adjustable
Chromium: transmittance T 50%~90%, adjustable
Titanium: transmittance T <10%~ 90%, adjustable

Previous Next

1 2 3 4

OEM Coating Products — Ceramic Substrate Seed Layer

Technical Description:
After laser drilling, PVD sputtering deposits a seed layer onto the ceramic substrate surface and via walls, forming a continuous metal film. Exposure and development create the plating pattern; chemical and electrolytic copper plating then convert the ceramic into a circuit carrier with through-hole copper pillars and metal traces.

Advantages:
Continuous-line production with excellent thickness uniformity.
Through-hole sputtered copper has good continuity, facilitating subsequent electroless and electrolytic copper plating.

Applications: high-power laser carriers / IGBT carriers / IC carriers.

Coating spec:
Ti-Cu thickness combination customizable per customer request.
Coating uniformity U%<5%; U% = (Tmax − Tmin) / (2 × Tavg)

OEM Coating Products

Technical description: Continuous-line vacuum coating replaces the conventional, non-eco-friendly chrome-plating wheel process. A specially developed coating system combined with varied sputter parameters allows aluminum-alloy wheels to display chrome and many other color variations.

Advantages:
Production experience: BoardTek has rich experience matching wheel-coating parameters with upstream/downstream painting; we offer corresponding process technology transfer.
Modular design: the sputter line can be configured per site, capacity and film requirements, with future-flexible adjustment.
Coating technical support and problem-solving: BoardTek provides experience-based support for development and volume production issues.

Applications:
Suitable for cast aluminum-alloy and forged wheel surface-coating processes.

Coating Specifications:
Wheel sizes: 16–24 inches
Colors: bright aluminum; black chrome
CASS：240 H<3mm

OEM Coating Products

Technical Description:
Notebook plastic-enclosure interior metallization uses physical vacuum-sputter deposition to apply a uniform, dense, continuous metal film inside the plastic enclosure. Designated grounding contact points give the metal film EMI-shielding and conductive functions.

Advantages:
Continuous low-temperature sputter process; no enclosure deformation.
Stable coating resistance.

Applications:
Plastic-Enclosure Interior EMI Shielding Film

Coating Specifications:
Coating adhesion (3M 610/3M 681 cross-cut) >4B
Enclosure large diagonal resistance: 10–15 Ω
Boss — surface resistance: 5–8 Ω

Image source: BoardTek original
